Description
DJDC 24V 100Ah LiFePO4 Deep Cycle Battery
Reliable Power for Your Off-Grid Needs
Upgrade your energy system with the DJDC 24V 100Ah LiFePO4 Battery, a compact and lightweight powerhouse designed for trolling motors, solar systems, RVs, kayaks, and more. Built with Grade-A prismatic cells and a 100A Smart BMS, this battery delivers long-lasting, safe, and efficient energy for all your adventures.
With an impressive approximate 4000 cycle life and a 10-year lifespan, this battery is your perfect off-grid companion. Whether you’re out on the water, camping off the grid, or powering a solar setup, you’ll enjoy dependable performance backed by a 2-year warranty
✅ Key Features:
-
High Capacity & Energy:Â 100Ah with 2560Wh energy output
-
Grade-A LiFePO4 Cells: Safe, stable, and long-lasting (4000–15,000 cycles)
-

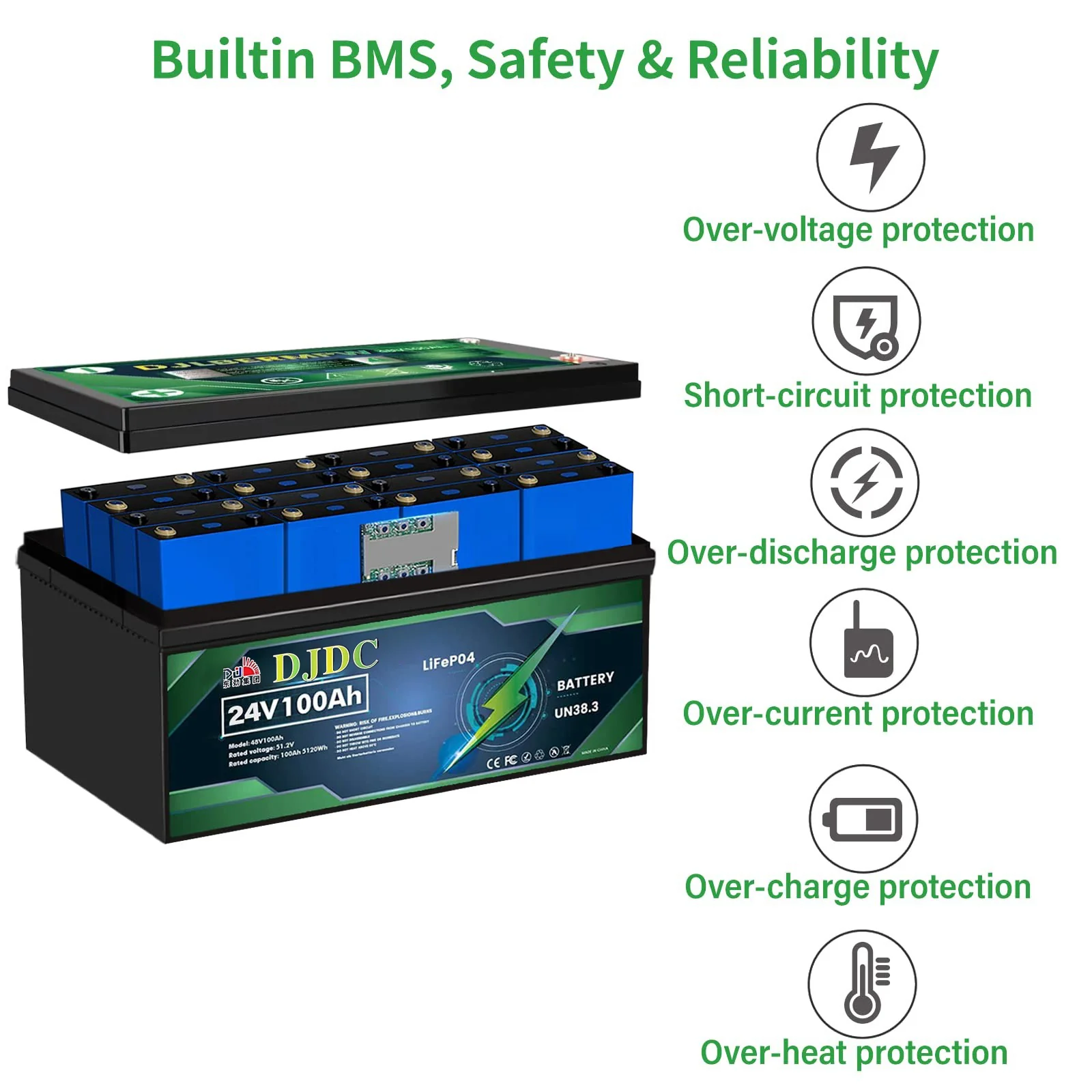

Smart 100A BMS:Â Full protection from overcharge, discharge, short circuit & temperature extremes
-
High Power Output: 100A continuous, 300A peak discharge for 2–3 seconds
-
Fast Charging:Â Supports up to 50A max charge current
-
Expandable Design:Â Configurable up to 4P2S for larger systems
-
Durable & Weather-Resistant:Â IP65-rated ABS+PC shell for outdoor use
-
Compact & Strong: 20.55″ x 9.45″ x 8.58″, 47.08 lbs – robust yet manageable
-
Wide Temperature Range: Operates from -20°C to 60°C

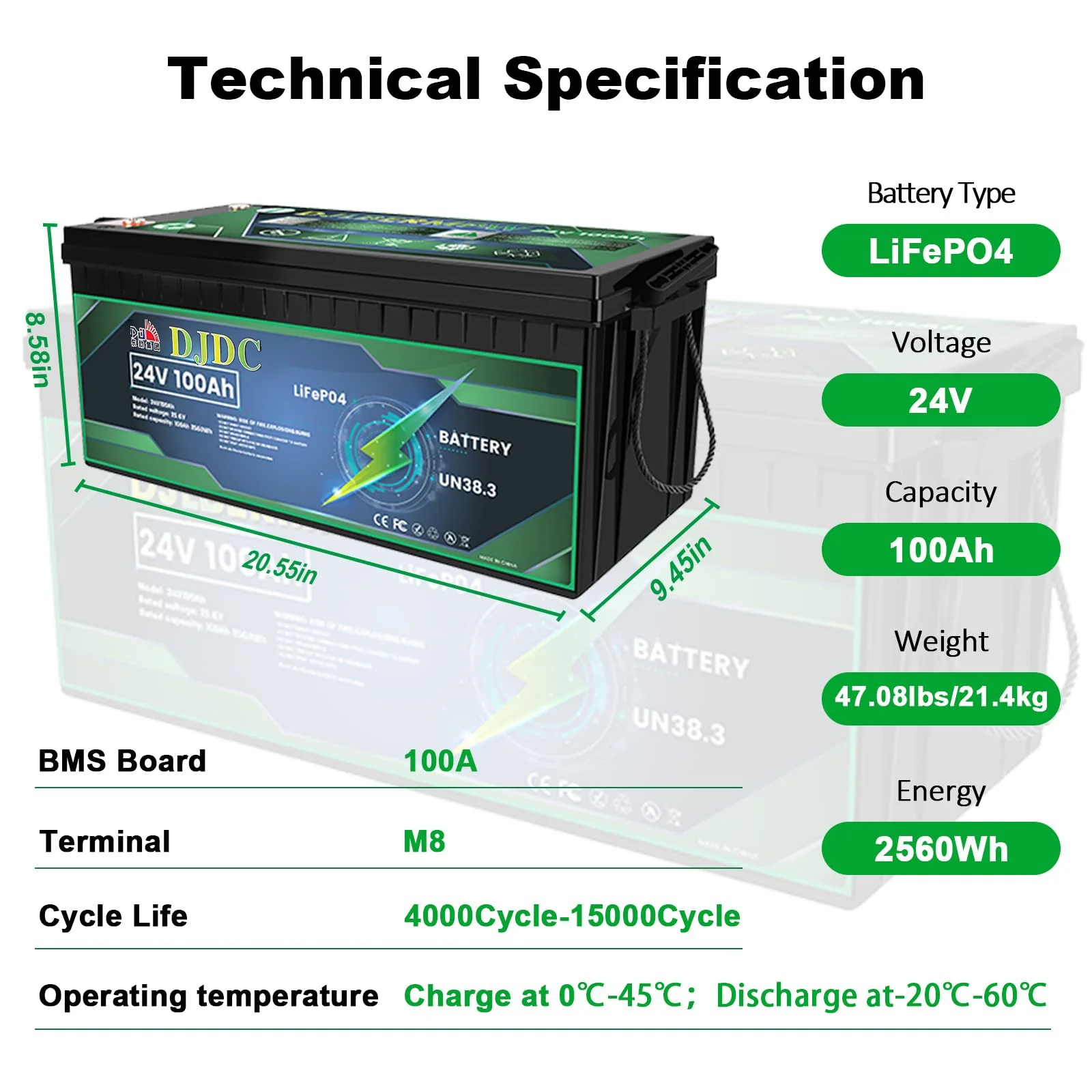

| Warranty | 2 years |
| Nominal Voltage | 25.6V |
| Rated Capacity | 100Ah |
| Battery Energy | 2560Wh |
| BMS Boad | 100A |
| Recommend Charge Current | 20A |
| Max Charge Current | 50A |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A(about 2-3 seconds) |
| Charge Temperature Range | 0-45°C |
| Discharge Temperature Range | -20-60°C |
| Recommend Charge Voltage | 28.8V |
| Max Charge Voltage | 29.2V |
| Discharge Cut-Off Voltage | 21.6V |
| Cell Type | LiFePO4 Prismatic A grade |
| Cycle Life | 4000-15000 Cycles |
| Max expansion | 4P/2S/4P2S |
| Terminal | M8, 9/16L, 5/16D(inch) |
| Shell material | ABS+PC |
| Protection level | IP65 |
| Battery Size | L20.55*W9.45*H8.58(inch) |
| Battery Weight | 47.08 lbs |
