Description

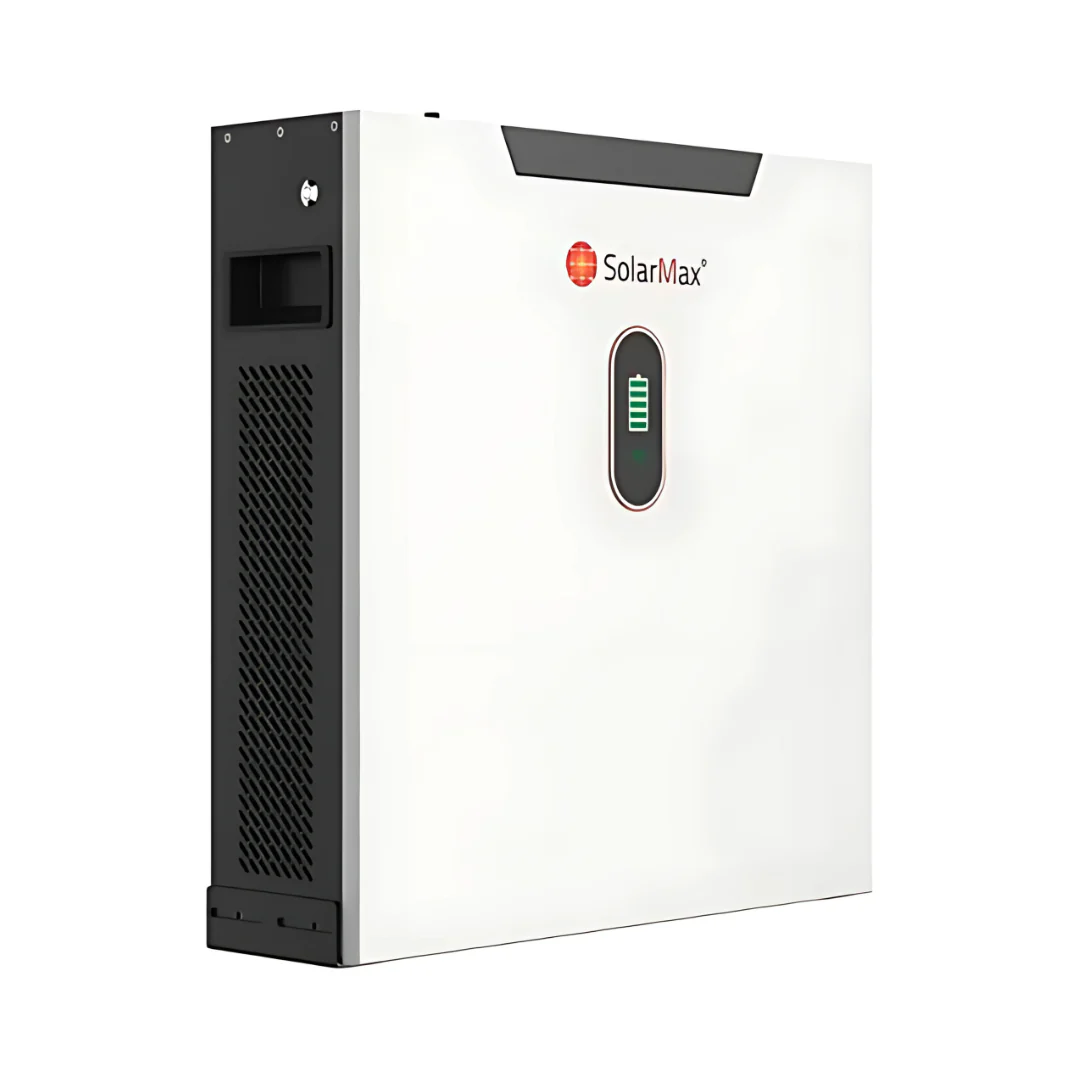

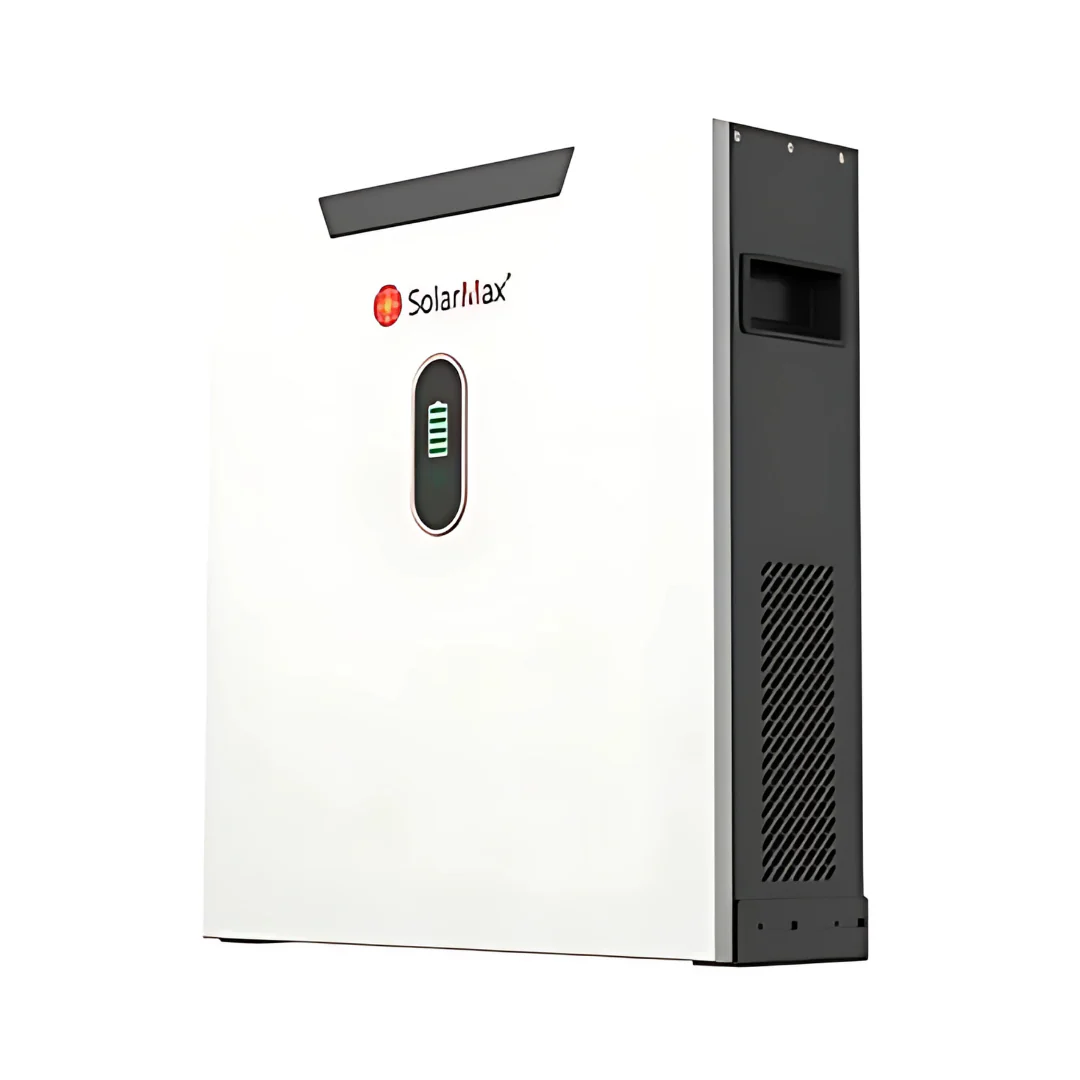

The SolarMax SM-LFP-5.12K Lithium ion battery 48V is a reliable and efficient energy storage solution. With its advanced lithium ion technology, it offers up to 5.12KWh of power and operates at 48V. This high-performance battery is perfect for powering your home or office, providing clean and sustainable energy that reduces your carbon footprint.
| Model | SM-LFP-5.12K |
| Battery System Capacity (kWh) | 5.12 kWh |
| Single Module Nominal Voltage (V) | 51.2 V |
| Application | Low Voltage |
| Parallel Application | Up to 15 Packs (follow the parallel procudure) |
| Cluster Net Capacity | 76.8kwh per LV System |
| BMS Voltage Range (V) | 44.8V – 57.6V |
| Cell Capacity (Ah) | 100 |
| Charge/Discharge Current (A) | 100 |
| DoD% (up to) | 90% |
| Battery Protection | Over Charge/Over Discharge/Over Tempreture/Over Current/Short Circuit |
| Communication Port | Can, RS485, RS232, |
| Remote Monitering & Setting | Wifi, Bluetooth |
| Discharge Temperature /°C** | -20-55 |
| Charge Temperature /°C** | 0-55 |
| IP Rating | IP20 |
| Altitude (m) | <3000 |
| Cycle Life | >6000/25°C SOH 80% |
| Features | Pre-Charge+Fuse LV+ Auto Contactor + BMS+ Multi BMS FW management |
| Installation | Wall Mounted/Floor Mounted/Stacked |
| Dimension (WxDxH mm) | 556x576x154.5 |
| Weight (Kg) | 49KG |
| Certification | UN38.3 |
